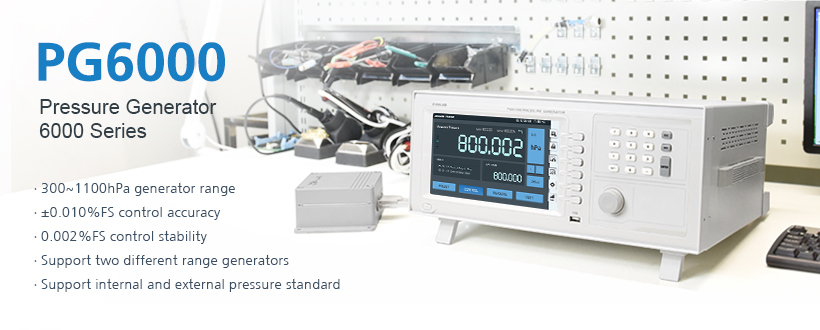

PG6000

Pressure Generator 6000 Series

PG6000 fully automatic pressure generator is an ideal choice for automatic pressure calibration.It can generate and reach to any pressure between 300hPa and 1100hPa with built-in high accuracy pumping source, and the pressure control resolution could reach 0.001hPa.Various communication interfaces and internal & external pressure standards are available.

PG6000 automatic pressure generator series contain two independent precision pressure control and adjustable channels. When the standard pressure range is lower than 15psi for gauge pressure or 30psi for absolute pressure, the pressure source is powered by the internal mini pressure generator, so no need for an external gas source.

Specificaton
Pressure control range	300~1100hPa
Pressure control accuracy	±0.010%FS
Pressure control resolution	0.001hPa
Control stability	±0.002%FS
Control speed	5~100hPa/min adjustable（load 1L）
Pressure measuring range	100~1100hPa
Pressure accuracy	±0.010%FS（Optimal±0.008%FS）
Pressure resolution	0.001hPa

Specification
Standard pressure regulator	Internal or external regulator
Calibration cycle	365 day
Display area	9 inch, 800x480 TFT LCD display
Touch panel	Capacitive touch screen
Backlight	LED backlight, adjustable brightness
Interface	RS232 / 485, USB, LAN , Wi-Fi (optional function)
Pressure interface	ф4 quick coupling
Power supply	100~240VAC 1.3A, 50 / 60Hz
External standard interface	RS232
Working temperature	10~40℃
Working humidity	10%~95%RH（no condensation）
Working pressure	100~1100hPa
Storage temperature	-20~70℃
Preheating time	<5 mins
Logging interval	1 second~24 hours
Data recording time	According to the internal memory capacity
EMC	EN 50081-1 Class B , EN 50082-1 Class B
ESD Protection	±25KV
Weight	16.5kg
Dimenstions	442×389×190mm（4U standard 19 inch rack）
