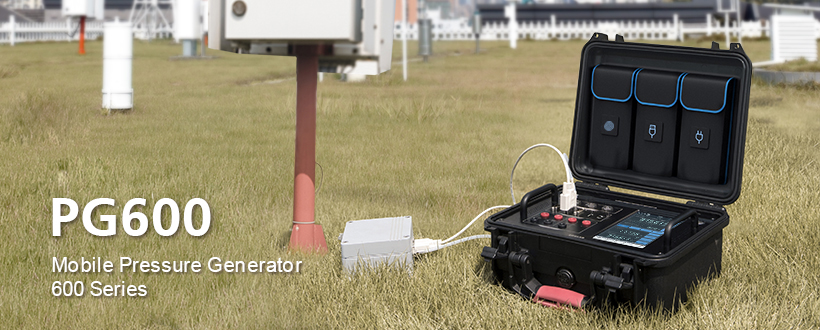

PG600
Pressure Generator 600 Series
· Portable design, multiple senors for mobile measurement
· Fully automatic programmable pressure generating
· Accuracy±0.010%., controlling stability 0.002%FS
· Internal pressure standard or external standard
- Pressure control
- Electrical
- General
| Specificaton | |
| Pressure control range | 100~1100hPa |
| Pressure control accuracy | ±0.010%FS |
| Pressure control resolution | 0.001hPa |
| Pressure control stability | 0.002%FS (0.002%FS after stable for 10 seconds) |
| Pressure control speed | 5~100hPa/min adjustable（load 1L） |
| Specificaton | |
| Voltage measuring range | 0~10V |
| Voltage measuring resolution | 0.1mV |
| Voltage measuring accuracy | ±1mV |
| Current measuring range | 0~20mA |
| Current measuring resolution | 1μA |
| Current measuring accuracy | ±5μA |
| Specification | |
| Display | 7" 480×800 TFT LCD display |
| Touch panel | Capacitive touch screen |
| Backlight | LED backlight, brightness adjustable |
| Communication Interface | RS232 PTB210 / 220 / 330 Pro×1, Common RS232×2, USB, USB storage, HART, Wi-Fi (optional function), BT (optional function) |
| Pressure interface | ф5 interface absolute pressure×1, differential pressure×2 |
| Power supply | 240V 90W AC-DC adaptor / built-in lithium polymer battery |
| Battery | Lithium polymer battery 14.8V / 8000mAh |
| Battery lifetime | 8 hours(continuous work) / 90 days standby |
| Working temperature | 10~40℃ |
| Working humidity | 10%~95%RH（No condensation） |
| Working pressure | 100~1100hPa |
| Storage temperature | -20~70℃ |
| Preheating time | <5 mins |
| Logging interval | 1 second~24 hours |
| Data recording time | According to the internal memory capacity |
| EMC | EN50081-1 Class B, EN50082-1 Class B |
| ESD Protection | ±25KV |
| IP Class | IP67（when the outer case is open） |
| Weight | 8kg |
| Dimenstions | 335×290×155mm |
