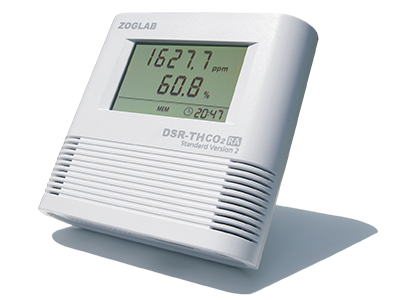

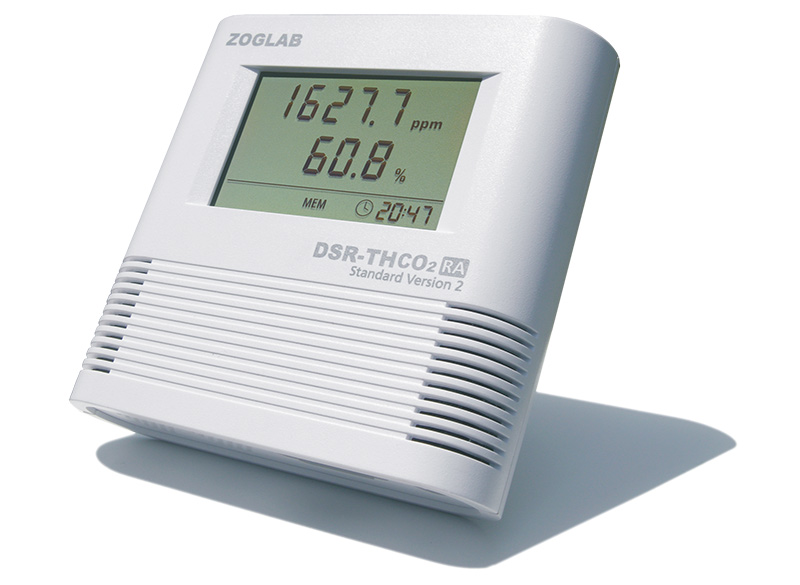

DSR-THCO?
Data Logger for Temperature and Humidity
Specifications
· Simultaneously measures and logs temperature, humidity and carbon dioxide
· High precision IR CO? sensor, with a lifetime of 15 years
· Optional measuring range between 2000ppm and 10000ppm

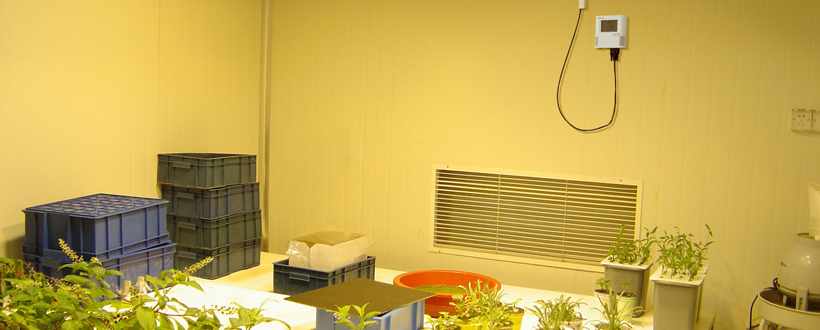

· Especially designed and developed for air quality, agriculture research, biological reaction, environment protection and other applications
Certificate
|
The DSR series data logger has been tested and found to comply with the qualifications designed by China Meteorological Administration and China State Bureau of Quality and Technical Supervision.
The DSR series data logger possesses multiple international patents and obtains the European Union CE certificate and FCC certifications.In addition,it has been assessed and found to meet the requirements of ISO 9001:2000 standard.The assorted data analysis software possesses independent intellectual property and achieves multiple national software certifications.
Specification
Measuring Data
| T Measuring Range | -30℃~70℃ |
| T Accuracy | ±0.3℃(23℃±2℃), full scale ±0.5℃ |
| T Resolution | 0.1℃/0.2℉ |
| RH Measuring Range | 0%~100%RH |
| RH Accuracy | ±3%RH(10%~85%RH), other range ±5%RH( Testing Environment 23℃±2℃) |
| RH Resolution | 0.1%RH |
| CO? Measuring Range | 0~9999.9ppm(Customized measuring range) |
| CO? Accuracy | ±70ppm , ±40ppm |
| CO? Resolution | 0.1ppm |
General
| Memory Size | 10,918[A] / 21,840[B] / 180,000[C] / 360,000[D]values |
| Alarm | High level and low level, display+beep+backlight |
| Sampling Interval | 2s、5s、10s、30s、60s、255s |
| Logging Interval | 2seconds~24hours |
| Start with Delay Time | 1~120s |
| Start Mode | Start immediately / Time-lapse start / Timing start |
| End Mode | Full / FIFO / Presetting units / Timing end |
| Timing Start / End | Random start / End with format YYMMDD HHMMSS |
| Storage Temperature | -50℃~90℃ |
| ESD Protection | ±25KV |
| Interface | RS232 / RS485[R] / USB[U] / LAN[L] / Wireless [W、B、Z、F、G] |
| Battery | 3.6V lithium battery ×1 |
| Battery Lifetime | Typical 1year (with a sample rate of 10 seconds),5 years （in sleep mode） |
| RTC Battery | CR2032 |
| Clock Accuracy | <12 mins/year |
| External voltage | 5~24V DC |
| Software | ANALYSIS |
| IP Class | IP54 |
Sensing Probe
| Model | Internal |
General Feature
| Dimensions | 123×117.3×33.4mm |
| Display Area | 66×42mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Weight | 300g |

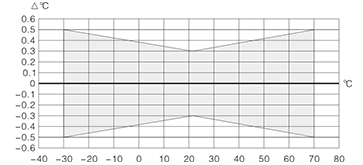

Temperature Accuracy |

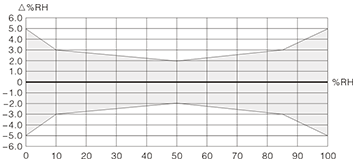

Humidity Accuracy |
 |
 |
Dimensions（Unit : mm）： |
 |
