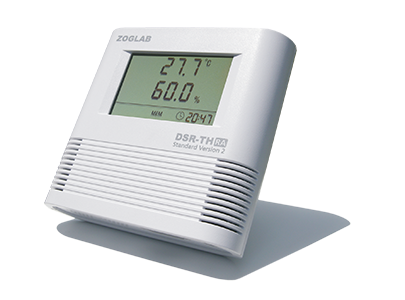

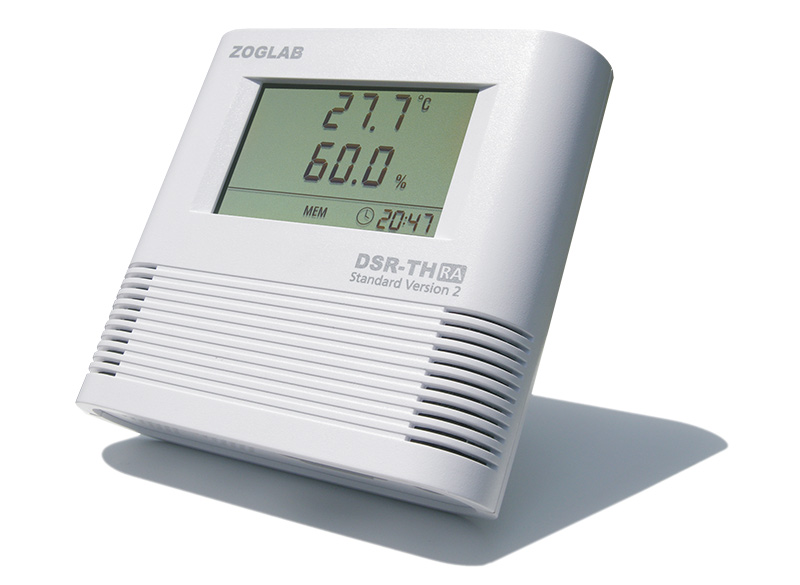

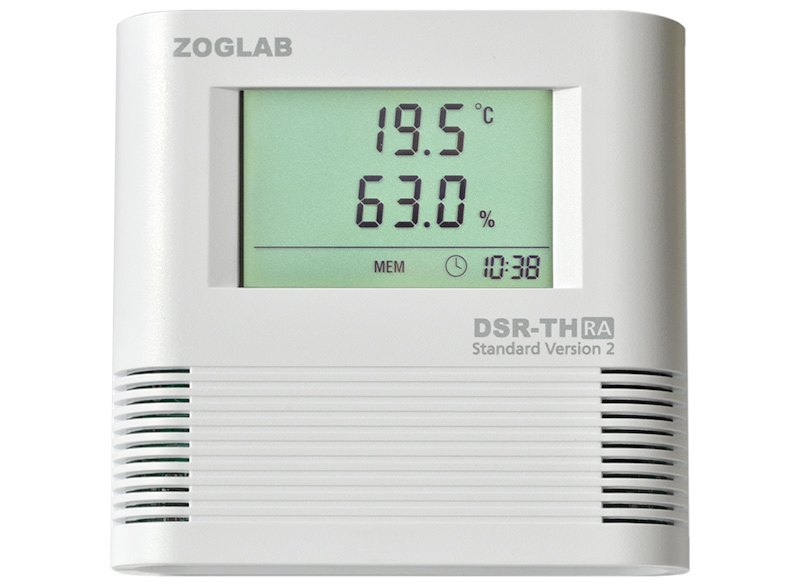

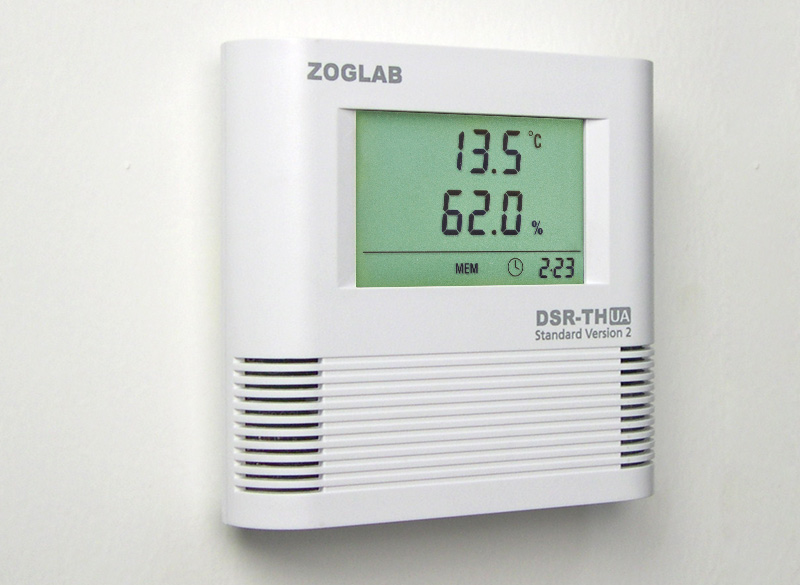

DSR-TH
Data Logger for Temperature and Humidity
Specifications
· Built-in compact high precision temperature and humidity sensors
· Selectable USB, RS232 / 485, LAN, wireless communication interfaces
· High definition LCD with wider viewing angles and redundant operation temperature
· Support on-line linear and nonlinear calibration

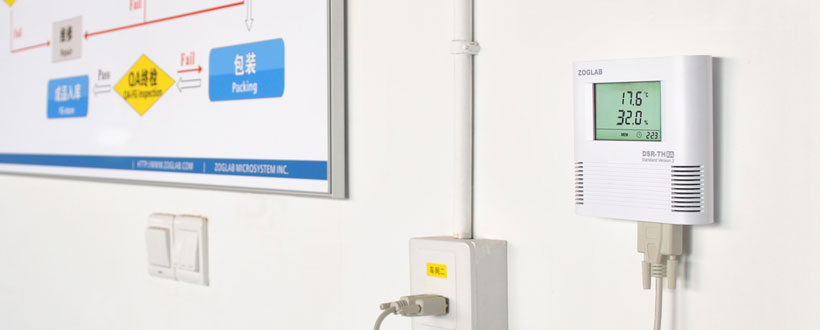

· Suitable for pharmaceutical, electronic production, biochemistry laboratory, museum management and other applications
Certificate
|
The DSR series data logger has been tested and found to comply with the qualifications designed by China Meteorological Administration and China State Bureau of Quality and Technical Supervision.
The DSR series data logger possesses multiple international patents and obtains the European Union CE certificate and FCC certifications.In addition,it has been assessed and found to meet the requirements of ISO 9001:2000 standard.The assorted data analysis software possesses independent intellectual property and achieves multiple national software certifications.
Specification
Measuring Data
| T Measuring Range | -30℃~70℃ |
| T Accuracy | ±0.3℃(23℃±2℃), full scale ±0.5℃ |
| T Resolution | 0.1℃/0.2℉ |
| RH Measuring Range | 0%~100%RH |
| RH Accuracy | ±3%RH(10%~85%RH) / other range ±5%RH(Testing Environment 23℃±2℃) / ±2%RH(High-precision version) |
| RH Resolution | 0.1%RH |
General
| Memory Size | 10,918[A] / 21,840[B] / 180,000[C] / 360,000[D]values |
| Alarm | High level and low level, display+beep+backlight |
| Sampling Interval | 2s、5s、10s、30s、60s、255s |
| Logging Interval | 2seconds~24hours |
| Start with Delay Time | 1~120s |
| Start Mode | Start immediately / Time-lapse start / Timing start |
| End Mode | Full / FIFO / Presetting units / Timing end |
| Timing Start / End | Random start / End with format YYMMDD HHMMSS |
| Storage Temperature | -50℃~90℃ |
| ESD Protection | ±25KV |
| Interface | RS232 / RS485[R] / USB[U] / LAN[L] / Wireless [W、B、Z、F、G] |
| Battery | 3.6V lithium battery ×1 |
| Battery Lifetime | Typical 1year (with a sample rate of 10 seconds),5 years （in sleep mode） |
| RTC Battery | CR2032 |
| Clock Accuracy | <12 mins/year |
| External voltage | 5~24V DC |
| Software | ANALYSIS |
| IP Class | IP54 |
Sensing Probe
| Model | Internal |
General Feature
| Dimensions | 123×117.3×33.4mm |
| Display Area | 66×42mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Weight | 260g |

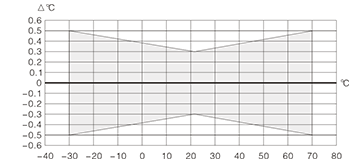

Temperature Accuracy |

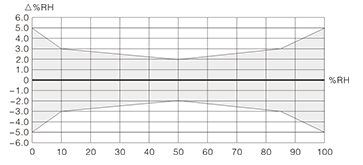

Humidity Accuracy |
 |
 |
Dimensions（Unit : mm）： |
 |
