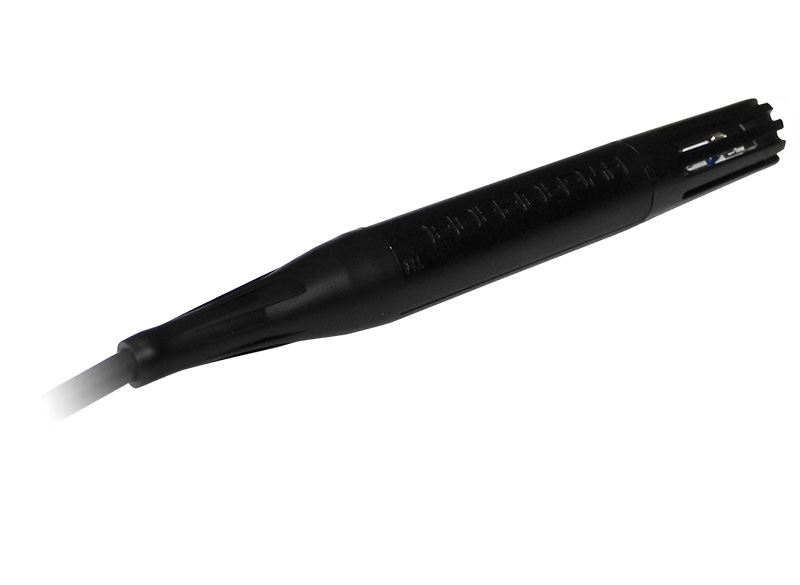

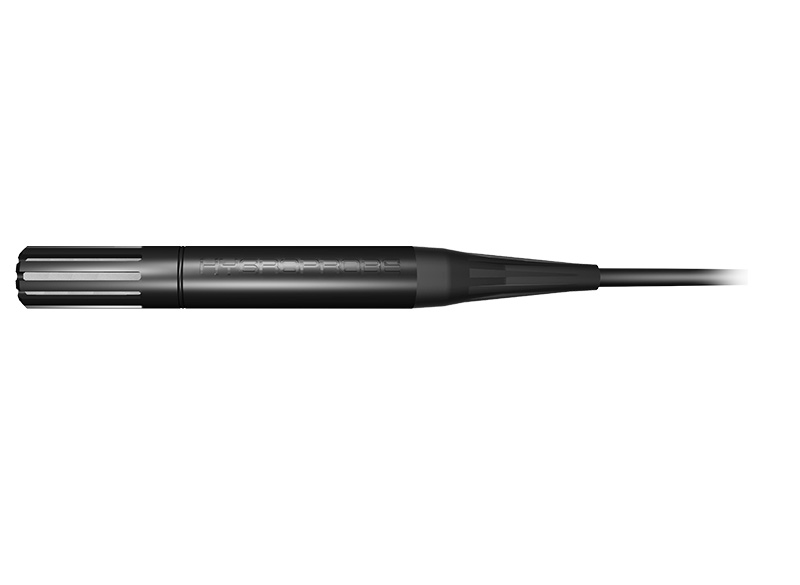

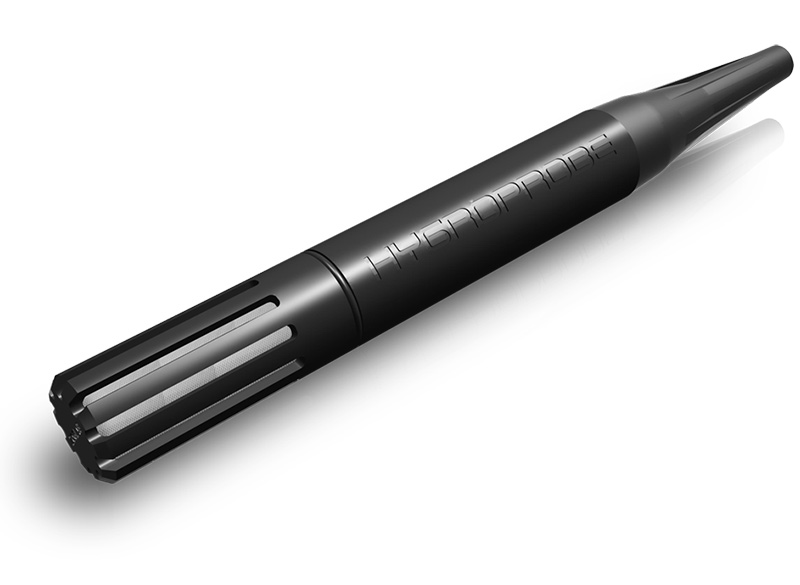

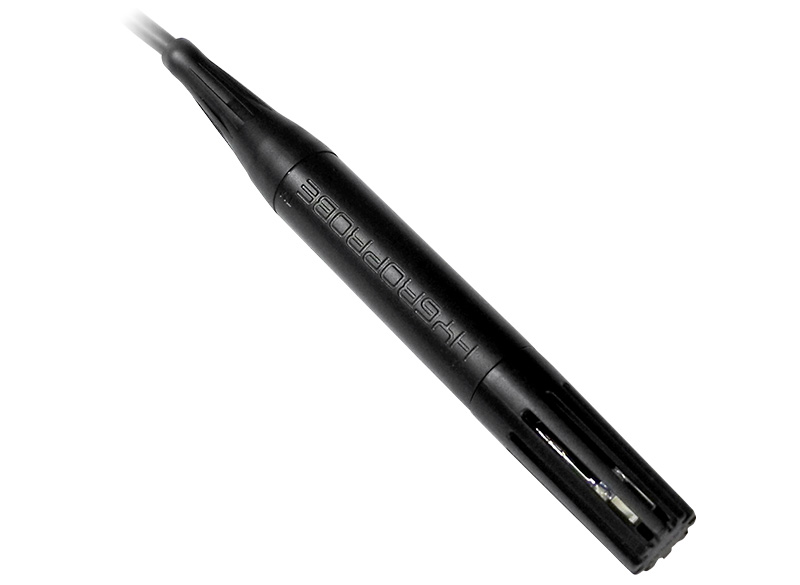

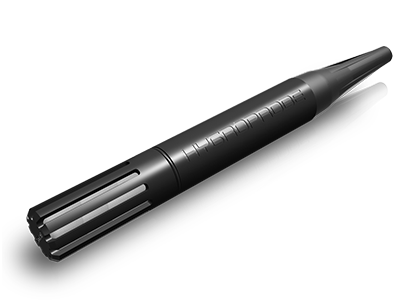

DSP1200
Temperature and Humidity Probe User's Guide
Specifications
· High accuracy with measuring range customized
· Optional analog signal or digital signal
· Single-point and multi-point calibration
· Compatible with Rotronic and Vaisala's probe command
· Optional interface M8 , RJ45 and 4 wire
· Toxicity and halogen free material , complying with GXP

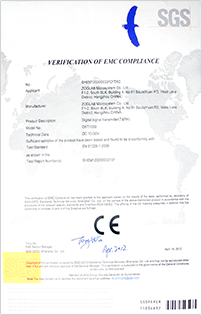

Certificate
|
Specification
Measuring Data
| T Measuring Range | -30℃~70℃ , -40℃~60℃(-40℃~85℃ customized) |
| T Accuracy | ±0.3℃(23℃±2℃) , ±0.5℃(FS) |
| T Resolution | 0.1℃/0.2℉ |
| RH Measuring Range | 0%~100%RH |
| RH Accuracy | ±3%RH(10%~85%RH) / other range ±5%RH(23℃±2℃) |
| RH Resolution | 0.1%RH |
General
| Power Supply | 5V~28V DC (0~5V 8V DC~28V DC 0~10V 14V DC~28V DC) |
| Output Type | Analog signal: Voltage 0~1V / 0~2.5V / 0~5V / 0~10V, linear frequency, analog frequency Digital signal: UART / I2C / SPI / USB / RS485 |
| Interface | M8、RJ45、4 Wires |
| Storage Temperature | -50℃~90℃ |
| ESP Protection | ±25KV |
| IP Class | IP64 |
Sensing Probe
| T Sensor model | NTC |
| H Sensor model | Humidity capacitance |
General Feature
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Dimensions | Φ12 x 73mm |
| Wire | 2m / 3m / 5m (customized) |
| Weight | 9g |

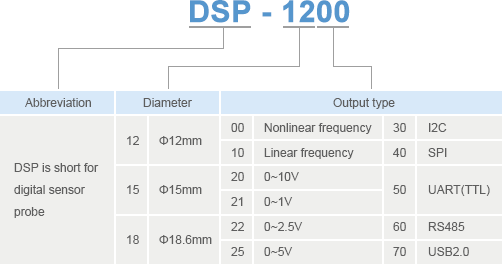

DSP1200 Family |
 |
Probe Dimensions（Unit : mm）： |
 |
