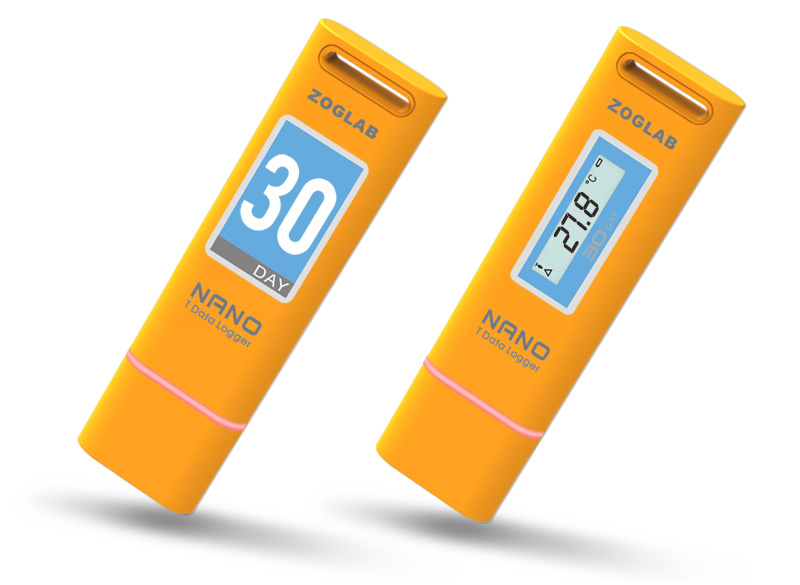

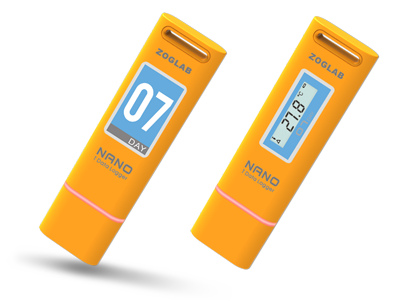

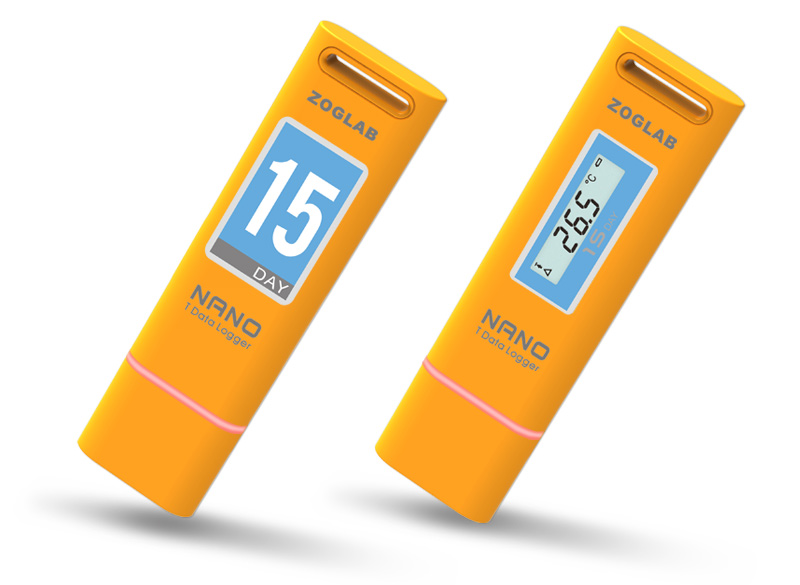

NANO-T
Compact Data Logger for Temperature
Specifications
· Compact size for portable using; integrated USB interface for a convenient connection with PC
· Visual alarm when temperature or humidity is out of limit
· Housing material is free of toxicity and halogen, which is in compliance with food and drug safety requirements
· Suitable for temperature data collection in narrow space
Certificate
|
Specification
Measuring Data
| T Measuring Range | -30℃~70℃,-40℃~85℃(No display) |
| T Accuracy | ±0.3℃（23℃±2℃），full scale ±0.5℃ |
| T Resolution | 0.1℃/0.2℉ |
General
| Memory Size | 7 / 15 / 30 / 45 / 60 / 90 / 120 days |
| Alarm | Highlight LED indicator with dual colors |
| Sampling Interval | 10s |
| Logging Interval | 5min (Memory Size 7 / 15 / 30 / 45 days) , 10min (Memory Size 60 / 90 days) 15min (Memory Size 120 days) |
| Start with Delay Time | 1~120s |
| Start Mode | Start Immediately / Time-lapse Start / Timing Start / Magnetic Start |
| End mode | Full / Timing End / Magnetic End |
| Timing start / end | Random start/End with format YYMMDD HHMMSS |
| Storage Temperature | -50℃~90℃ |
| ESD Protection | ±25KV |
| Interface | USB 2.0 |
| Battery | 3.6V lithium battery (Rechargeable) |
| Battery Lifetime | 45~150 days（Working time） |
| Recharge Time | ≥300 cycles |
| Software | Quick Log |
| IP Class | IP64 |
Sensing Probe
| Model | Digital Sensor / NTC |
General Feature
| Dimensions | 79×22×7.4mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Display Area | 21.5×5.5mm |
| Weight | 12g |
Temperature Accuracy |
 |
Dimensions（Unit : mm）： |
 |
