HMR1010
Data Logger for Temperature
Specifications
· Sturdy stainless steel or Al-Mg alloys housing, IP68
· Redundant operation temperature of -55℃~125℃, suitable for harsh environment
· In compliance with CE / FCC / UL / CSA / explosion protection requirements
· Flexible and easy-to-use interfaces（USB / RS232）to connect with PC
Certificate
|
Specification
Measuring Data
| T Measuring Range | -55℃~125℃ ， -40℃~85℃（basement） |
| T Accuracy | ±0.1℃ , 0.5℃（basement） |
| T Resolution | 0.01℃/0.02℉ |
General
| Memory Size | 30,000/60,000 units |
| Alarm | High level and low level , LED Indicator light |
| Sampling Interval | 2s、5s、10s、30s、60s、255s |
| Logging Interval | 2seconds~24hours |
| Start with Delay Time | 1~120s |
| Start Mode | Key operation / Start immediately / Time-lapse start / Timing start |
| End Mode | Key operation / Full / FIFO / Presetting units / Timing end |
| Timing Start / End | Random start / End with format YYMMDD HHMMSS |
| Storage Temperature | -55℃~125℃ , -50℃~90℃（basement） |
| ESD Protection | ±45KV |
| Interface | Mini USB |
| Battery | LS14250（temperauture range:wide） |
| Battery Lifetime | 1 year / 3 years （in sleep mode） |
| Clock Accuracy | <12 mins/year |
| Software | ANALYSIS 3 |
| IP Class | IP68 |
Sensing Probe
| Model | PT100/NTC |
| Dimensions | Φ6.5×33 mm |
General Feature
| Dimensions | Φ30×155 mm |
| Housing | 316L Stainless steel |
| Weight | 223g |

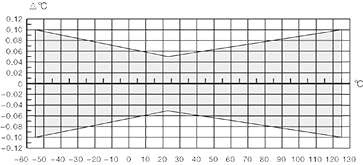

Temperature Accuracy |

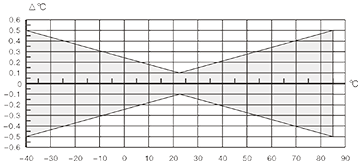

Temperature Accuracy（basement） |
 |
 |
Dimensions（Unit : mm）： |
 |
