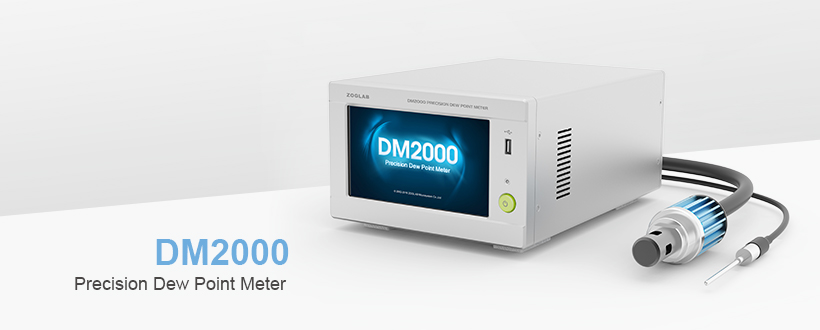

DM2000
Precision Dew Point Meter
? Precision drift free dew point measurement
? Highest accuracy ±0.2°Cdp
? Robust and durable sensor design
? Force frost technology
- Specification
- Dew point sensor
- Temperature sensor
| Specification | |
| Measuring accuracy | ±0.2℃dp，±0.1℃ Temperature |
| Measurement units | °C, °F dew point; %RH; °C, °F temperature; g/m3; g/kg; aw; Δ (t – t dew point) |
| Resolution | Resolution 0.1 for °C, °F and %RH, 0.01 for g/m3 and g/kg |
| Response speed | 1°C/sec plus settling time (dew point dependant) |
| Power supply | 100~240VAC 0.5A，50~60Hz |
| Battery | Lithium polymer battery 14.8V/8000mAh |
| Battery life | 8 hours |
| Analog output | 4~20mA |
| Communication interface | RS232/485、USB、LAN |
| Working temperature | -20~50℃(Whole device) |
| Dimensions | 215×133×302mm（w/h/d）(3U, 1/2 size of 19 inch rack ) |
| Weight | 5kg |
| Specification | |
| Dew point range | -30℃dp@ sensor temperature of 20℃ +90℃dp@ sensor temperature of 90℃ |
| Temperature range | -40℃~90℃(dew point sensor working temperature) |
| Humidity range | <2%RH~100%RH |
| Min measured dew point | -30℃ @20℃ |
| Mirror material | Gold-plated copper(Standard) |
| Sensor material | 316L stainless steel(Standard) |
| Temperature measuring | 4 wires PT100, 1/10 DIN |
| Sample flow | 0~2 NI/min(Under sampling) |
| Max. speed | 10 m/sec direct insertion, 30 m/sec with sintered guard |
| Pressure | 2Mpa |
| Cable length | 2m/5m/customized |
| Specification | |
| Temperature measuring | 4 wires PT100, 1/10 DIN |
| Cable length | 2m/5m/customized |
