DHM1100
Handheld Differential Pressure Meter
Specifications
· High accuracy allows deviation to be around ±0.5%FS ±2 Pa
· Key query operation, MAX/MIN/AVG value available
· Extremely low consumption enables 2 AAA batteries to be continuously working for 500 hours
· Screen backlight guarantees the data to be read at badlight condition
Certificate
|
Specification
Measuring Data
| DP Measuring Range | -1000~1000Pa |
| DP Accuracy | ±1.5%FS±3Pa |
| DP Resolution | 1Pa |
General
| Sampling Interval | 1s |
| Working Temperature | -30℃~70℃ |
| Storage Temperature | -50℃~90℃ |
| ESD Protection | ±25KV |
| Auto Power Save | 5 mins |
| Battery | AAA battery × 2 |
| Battery Lifetime | ≥500 hours(Without alarm) |
| IP Class | IP50 |
Sensing Probe
| Model | Silicon Piezoresistive Sensor |
General Feature
| Dimensions | 140×58×20mm |
| Housing | ABS+PC,flame-retardant,toxicity and halogen free |
| Display Area | 47×16mm |
| Weight | 101g |

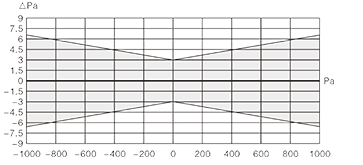

Differential Pressure Accuracy |
 |

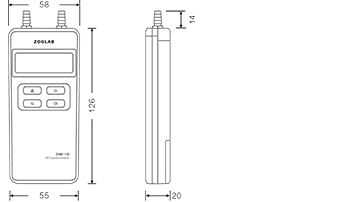

Dimensions（Unit : mm）： |
 |
